Self Adhesive PTFE Tape Industrial Series, cost-effective non stick PTFE adhesive tape
Self Adhesive PTFE Tape is made from PTFE Coated Fiberglass Fabric, and coated with silicone pressure adhesive on the back side. This silicone PSA is heat resistant and long lasting, and the yellow textured PVC release liner is applied to the adhesive surface for ease of application.
PTFE coating surface ensure easy release property, it is the product of choice where there is a request for continuous and efficient processing, offering excellent initial tack, superior bonding strength and long lasting performance at high temperatures (up to 500˚F / 260˚C).

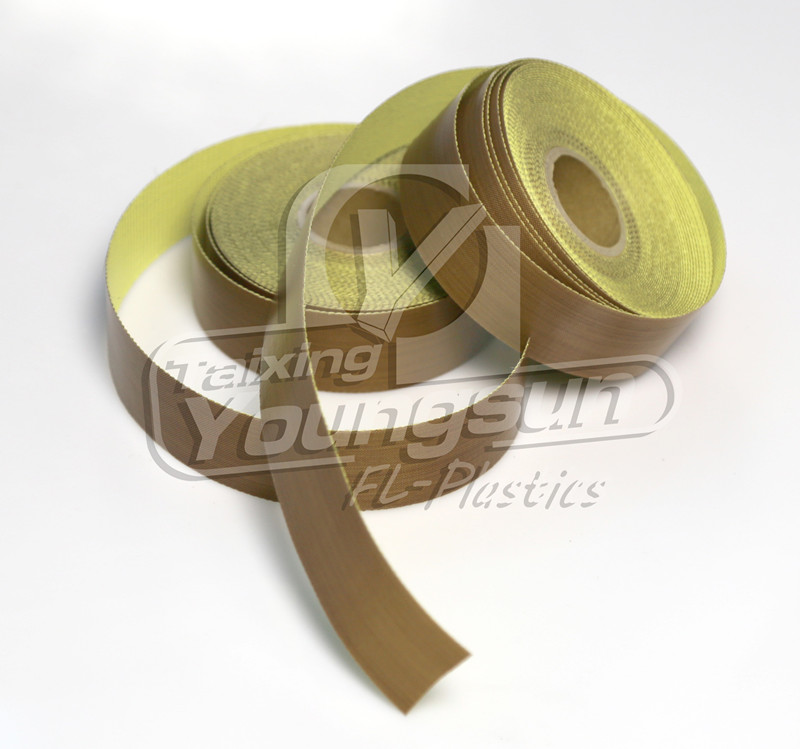

self adhesive ptfe tape
Property of PTFE industrial adhesive tape
Silicone pressure adhesive tape contain non stick PTFE surface and heat resistant adhesive that allow for easy release, superior mechanical strength, long lifetime and dimensional stability.
Self Adhesive PTFE Tape with silicone PSA is the best solution for application which has requirement for continuous and efficient processing, excellent bonding strength and long lasting performance at high temperatures (up to 500˚F / 260˚C).
The properties of PTFE coated tape with silicone PSA is as follows.
★ Excellent dimensional stability and durability in heat.
★ Superior easy mold release property, excellent Non stick
★ operating continuous from 70°C and +260°C
★ Flame resistant
★ High dielectric constant
★ Good mechanical strength
PTFE mold release tape
Applications of PTFE coated fabric with adhesive
The main applications including Package (heat-sealing, heat shrink, plastic bag manufacturing), PVC window & door welding, Plastic and polymer processing (laminating, curing, extrusion, casting, vulcanization), Wood processing and laminating, Textile, Electronics (electrical insulation, cable wrapping, FPCB manufacturing), Automotive, Aerospace(Mold release, cable wrapping) and so on.
Technical Data Sheet of Self Adhesive PTFE Tape
| Product | Product Category | Coating |
|---|---|---|
| PTFE GLASS FABRIC SELF ADHESIVE | INDUSTRIAL SERIES | SILICONE PSA |
| PTFE Adhesive Fabric Industrial Series | ||||||
|---|---|---|---|---|---|---|
| Style | Standard Width(mm) Please ask for other widths | Backing Thickness (mm) | Total Thickness (mm) | Weight (g/m2) | Adhesive (N/cm) | Tensile Strength Warp/Fill (N/cm) |
| YS7010W-ESONE | 1000, 1250 | 0.10 | 0.15 | 200 | 5.4 | 240/200 |
| YS7011A-ESONE | 1000, 1250 | 0.11 | 0.16 | 210 | 5.4 | 240/200 |
| YS7011AJ-ESONE | 1000, 1250 | 0.11 | 0.16 | 220 | 5.4 | 240/200 |
| YS7012AJ-ESONE | 1000, 1250 | 0.12 | 0.17 | 250 | 5.4 | 235/215 |
| YS7023AJ-ESONE | 1000 | 0.23 | 0.28 | 500 | 5.8 | 420/360 |
Specification of PTFE adhesive tape
The normal size of self adhesive PTFE tape is 1 meter wide, 30m/50m/100m (or yard) long per roll, with yellow release liner for ease of application.
Or can be cut into small adhesive tape, with 12mm, 19mm, 25mm, 50mm, 75mm wide, 5m/10m/30m/50m long per roll, with or without yellow liner.

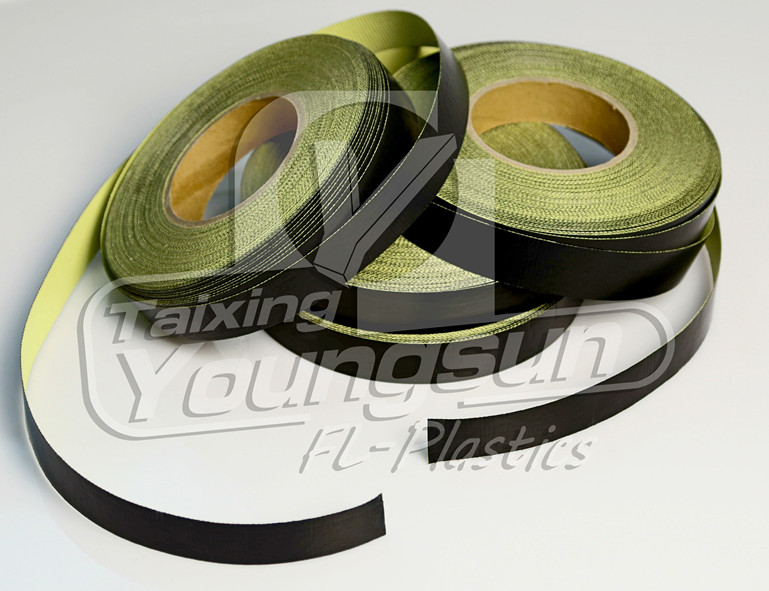

Teflon adhesive tape
Adhesive Backed Teflon Tape is impregnated with polytetrafluoroethylene(PTFE). For use in a wide variety of applications including sealers, packaging machines, heat platens and hot plates.
PTFE Adhesive Tapes
Esone PTFE Adhesive Packing
