PTFE Open Mesh Fabric
ESONE® PTFE open mesh fabric is coated with high quality PTFE resin, the basic material is woven open mesh fiberglass or aramid fabric (like Kevlar or Nomax). The main applications is screen printing, drying industry, packaging industry, textile industry, wood processing industry and so on, which is used as heat resistant and non stick conveyor belt to transport materials through ovens.
The mesh size of PTFE open mesh fabric is ranging from 1×1, 2×2.5, 4×4, 5×5, 8×8 to 10×10, PTFE open mesh fabric is FDA & LFGB certificated, can be used in direct contact with food.
Properties of PTFE mesh fabrics
★ Controlled porosity, different mesh size from 1mm to 10mm could be made
★ Resist almost all chemical, such as corrective agent and others
★ Operating temperature range from -70 to 260 degrees
★ Superior non-stick surface, easy to clean and release
★ Any sizes could be made, the maximum width is 4m
★ Exceptional strength and dimensional stability.
★ Food grade, can touch food directly
★ Light weight, easy to install
★ Resist to UV, IR and HF
★ High dielectric strength
★ Could be Anti-static
Specifications of PTFE open mesh fabric
| PTFE Glass - open mesh fabric series | ||||||
|---|---|---|---|---|---|---|
| Style | Standard Width(mm) Please ask for other widths | Mesh Size (mm) | Weight (g/m2) | Weft | Color | Tensile Strength Warp/Fill (N/cm) |

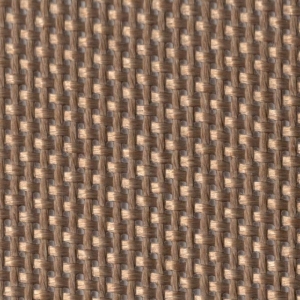

| YS6001-ESONE | 1000, 1500, 2050, 2600,2800, 3200,3650, 4000 | 1 x 1 | / | / | Brown | 446/330 |

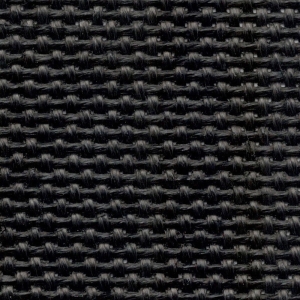

| YS6002-ESONE | 1000, 1500, 2050, 2600,2800, 3200,3650, 4000 | 1 x 1 | / | / | Black | 446/330 |

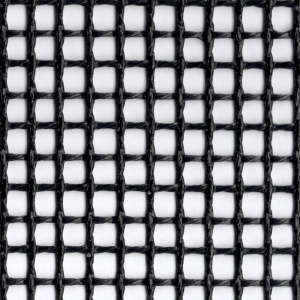

| YS6003-ESONE | 1000, 1500, 2050, 2500,2750, 3200, 3350,3600, 4000, 5350, 6000 | 4 x 4 | 460 | Single weft | Black | 320/434 |

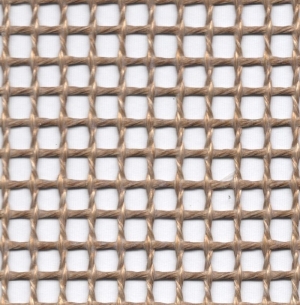

| YS6004-ESONE | 1000, 1500, 2050, 2500,2750, 3200, 3350,3600, 4000, 5350, 6000 | 4 x 4 | 460 | Single weft | Brown | 320/434 |

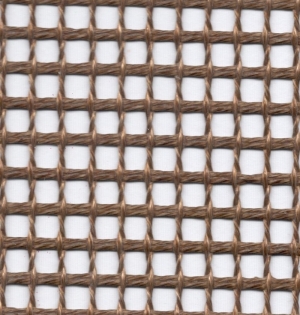

| YS6008-ESONE | 1000, 1500, 1700, 2050,2500, 2700, 3200, 3400,3600, 3800, 4000, 5350, 6000 | 4 x 4 | 580 | Double weft | Brown | 360/500 |

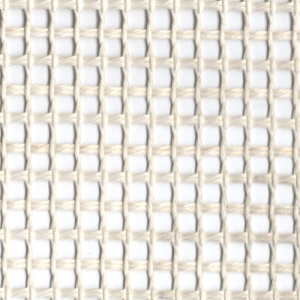

| YS6011-ESONE | 1000, 1500, 2500, 2700,3200, 3800, 4000, 5350, 6000 | 4 x 4 | 580 | Double weft | White | 330/470 |

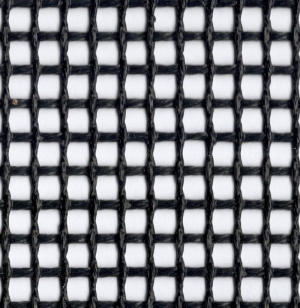

| YS6012-ESONE | 1000, 1500, 1700, 2050,2500, 2700, 3200, 3400,3600, 3800, 4000, 5350, 6000 | 4 x 4 | 580 | Double weft | Black | 360/500 |

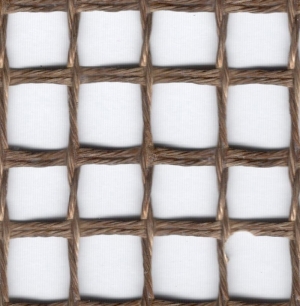

| YS6013-ESONE | 1000, 1500, 2000, 3000 | 10 x 10 | / | / | Brown | 220/360 |

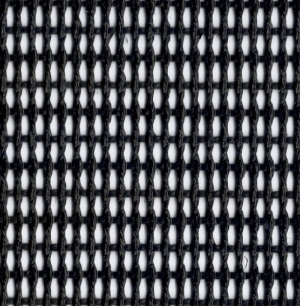

| YS6014-ESONE | 1000, 1500, 1800, 2000,3000, 3600 | 2 x 2.5 | / | / | Black | 290/400 |

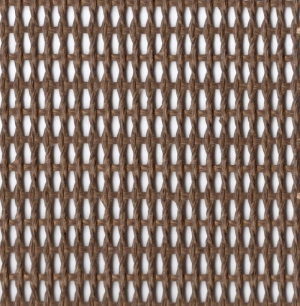

| YS6015-ESONE | 1000, 1500, 1800, 2000,3000, 3600 | 2 x 2.5 | / | / | Brown | 290/400 |

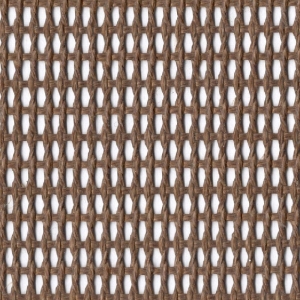

| YS6016-ESONE | 1000, 1400, 2000, 2800 | 2 x 4 | / | / | Brown | 330/470 |

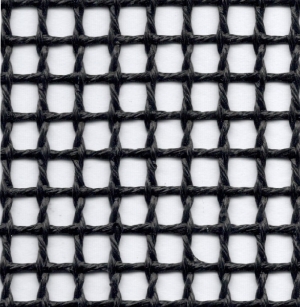

| YS6017-ESONE | 1000, 1500, 2000, 3600, 4000 | 5 x 5 | / | / | Black | 320/434 |

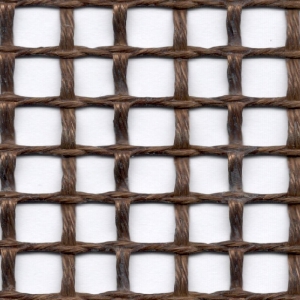

| YS6018-ESONE | 1000, 1400, 2000,2800 | 8 x 8 | / | / | Brown | 350/480 |
| PTFE Glass - Stronger fiberglass series | |||||||
|---|---|---|---|---|---|---|---|
| Style | Standard Width(mm) Please ask for other widths | Mesh Size (mm) | Weight (g/m2) | Fiberglass | Weft | Color | Tensile Strength Warp/Fill (N/cm) |

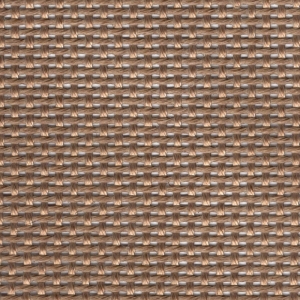

| YS6001S-ESONE | 1000, 1500, 2000, 3000 | 1 x 1 | / | Stronger fiberglass | / | Brown | 536/410 |

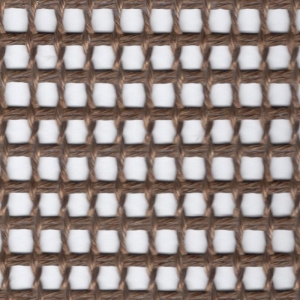

| YS6008S-ESONE | 1000, 1400, 2500, 2600,2700, 3300, 3400, 3700,3800, 4000 | 4 x 4 | 720 | Stronger fiberglass | Double weft | Brown | 390/580 |

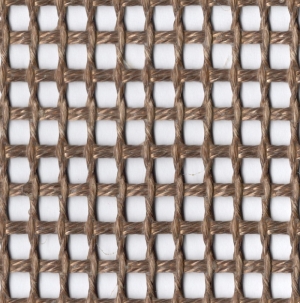

| YS6008S-S-ESONE | 1000, 1350, 2700 | 4 x 4 | 1180 | Stronger fiberglass | Double weft | Brown | 480/940 |

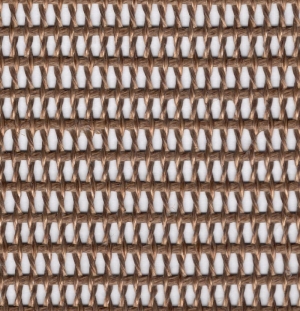

| YS6016S-ESONE | 1000, 1700, 1800, 1900, 2400, 2600, 2800, 3400, 3600, 3800 | 2 x 4 | / | Stronger fiberglass | / | Brown | 410/590 |

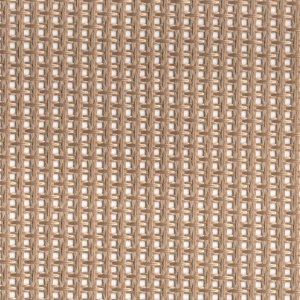

| YS6030-ESONE | 1000, 1500, 1700, 2050,2700, 3200, 3400,3600,3800, 4000 | 2 x 2 | 660 | Stronger fiberglass | Triple weft | Brown | 680/620 |
| YS6031-ESONE | 1000, 1500, 2050, 2700,3200, 3600, 3800, 4000 | 2 x 2 | 660 | Stronger fiberglass | Triple weft | Black | 680/620 |
| YS6032-ESONE | 1000, 1500, 2050, 2700,3200, 4000 | 2 x 2 | 660 | Stronger fiberglass | Triple weft | Red | 680/620 |
| PTFE Kevlar/Glass - Kevlar/Glass series | |||||
|---|---|---|---|---|---|
| Style | Standard Width(mm) Please ask for other widths | Mesh Size (mm) | Warp/Weft | Color | Tensile Strength Warp/Fill (N/cm) |
| YS6007 Kevlar-ESONE | 1000, 1700, 2000, 2700,3400, 4000 | 4 x 4 | Kevlar/Glass | Brown | 380/900 |
| YS6200Bullnose Joint-ESONE | 120, 150, 170, 190, 210,250, 300 | 4 x 4 | Kevlar/Glass | Brown | / |
| YS6201Bullnose Joint-ESONE | 120, 150, 170, 190, 210,250, 300 | 4 x 4 | Kevlar/Glass | Black | / |

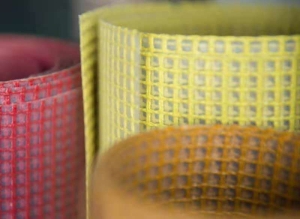

| PTFE Glass - film laminated mesh series | ||||||
|---|---|---|---|---|---|---|
| Style | Standard Width(mm) Please ask for other widths | Mesh Size (mm) | Weight (g/m2) | Warp | Color | Tensile Strength Warp/Fill (N/cm) |
| YS6040-ESONE | 1000, 1200, 1500 | 4 x 4 | 1200 | Triple warp | Brown | 820/780 |
| YS6041-ESONE | 1000, 1200, 1500 | 4 x 4 | 1200 | Triple warp | White | 820/780 |
