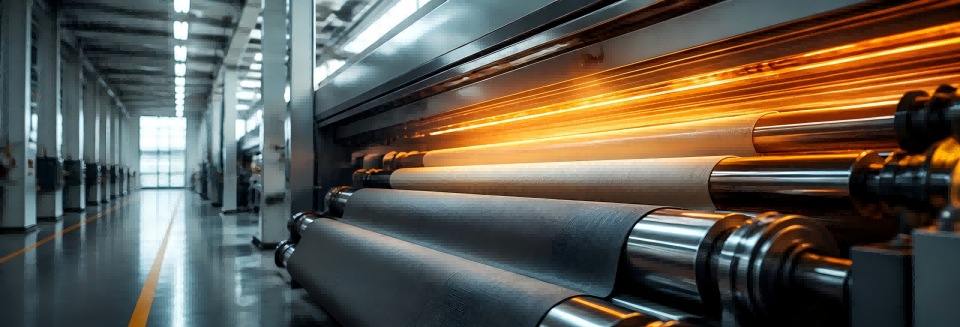

Textile Manufacturing
ESONE’s product is apply to a large range of textile manufacturing, such as garment fusing, digital printing and drying, textile lamination, non woven fabrics manufacturing, casting and curing process, carpet flooring mat manufacturing.
Our product is offering long lasting and high performance, in order to maximum customers’ equipment up time and improve the quality of product.
Applications
Non woven fabric manufacturing
The heat resistant and non stick PTFE coated belt, is the critical feature of the thermal bonding process of non woven manufacturing.
During the drying process, the cotton with or without glue, the fiber with low melting point need to be dried and cured, then a PTFE mesh belt or PTFE heavy duty belt will be needed.
Digital Printing and Drying
Digital printing is a modern way to print pattern, different from traditional printing, digital printing minimize the printing cost and speed up the printing time.
PTFE mesh conveyor belt is used in the digital printing and drying, since PTFE mesh belt is Non stick, heat resistant, easy to install and cost-effective.
Fusing process is a important method of fabric joining in apparel manufacturing, this process is used to attach the interlining of shirt or outwear. By melting the resin coating of interlining into fabric under heat pressure, both fabric and interlining will be attached strongly when it becomes cool and hard.
For the fusing machines, every operators are allocated to the PTFE Endless Belt, this no joint Teflon conveyor belts allows exact positioning of the parts. Fusing machines are also used in the furniture and automotive industry for applying knitted spacer, foams or non-woven fabrics to leather.
Product
ESONE® PTFE mesh belts are coated with high quality PTFE resin, the basic material is woven open mesh fiberglass or aramid fabric (like Kevlar) or Nomax. The main applications is screen printing, drying industry,packaging industry, textile industry, wood processing industry and so on, which is used as heat resistant and non stick conveyor belt to transport materials through ovens. PTFE open mesh fabric is FDA & LFGB certificated, can be used in direct contact with food.
PTFE mesh fabric for Textile manufacturing | |||||
---|---|---|---|---|---|
Style | Mesh Size (mm) | Weft | Color | Weight (g/m2) | Tensile Strength Warp/Fill (N/cm) |
YS6001 | 1x1 | Single weft | Brown/White | 440 | 430/285 |
YS6003 | 4x4 | Single weft | Black | 540 | 300/440 |
YS6004 | 4x4 | Single weft | Brown | 540 | 300/440 |
YS6007 | 4x4 | Fill-Fiberglass Warp-Kevlar | Brown | 560 | 690/460 |
YS6008 | 4x4 | Double weft | Brown | 575 | 370/690 |
YS6008S | 4x4 | Double weft Stronger fiberglass yarn | Brown | 720 | 540/700 |
YS6008HS | 4x4 | Double weft Much stronger fiberglass yarn | Brown | 1200 | 700/750 |
YS6012 | 4x4 | Double weft | Black | 600 | 300/690 |
YS6013 | 10x10 | / | Brown | / | / |
YS6014 | 2x2.5 | / | Black | / | 375/280 |
YS6015 | 2x2.5 | / | Brown | / | 375/280 |
YS6016 | 2x4 | / | Brown | / | / |
YS6016S | 2x4 | Stronger fiberglass yarn | Brown | / | / |
YS6018 | 8x8 | / | Brown | / | / |
PTFE Heavy Belting is heavily coated with PTFE for use in the carpet industry, this PTFE fabrics has great release properties and long life times.
With different structural weaving types, ESONE is offering several types of impression to the finished products.
The applications including rubber curing in ovens, walk off mats producing, Luxury vinyl tile manufacturing, PVC backed carpets and so on.
PTFE Heavy Belt for Textile Manufacturing | |||||
---|---|---|---|---|---|
Style | Standard Width(mm) Please ask for other widths | Normal Thickness (mm) | Weight (g/m2) | PTFE Content (%) | Tensile Strength Warp/Fill (N/cm) |
YS9035AJ | 1000, 1500, 2600 | 0.35 | 680 | 64 | 540/508 |
YS9045AJ | 1000, 1500, 2600 | 0.45 | 900 | 55 | 540/508 |
YS9060AJ-ESONE | 2500, 2760 | 0.60 | 1170 | 50 | 880/840 |
YS9063A | 2350 | 0.63 | 1140 | 48 | 880/840 |
YS9066A | 2260 | 0.66 | 1050 | 45 | 890/850 |
YS9068A | 2450 | 0.68 | 1015 | 41 | 890/850 |
YS9070A | 2550 | 0.70 | 1100 | 46 | 860/820 |
YS9075A | 1500 | 0.75 | 750 | 40 | 780/760 |
YS9076A-1 | 2350, 2550 | 0.76 | 1015 | 43 | 800/780 |
YS9076A-2 | 3800 | 0.76 | 1150 | 50 | 840/800 |
YS9079A | 3800 | 0.79 | 1290 | 55 | 840/800 |
YS9088A | 1230 | 0.88 | 1230 | 42 | 1200/1100 |
YS9089A | 3800 | 0.89 | 1085 | 38 | 1120/1020 |
YS9090P | 1500 | 0.90 | 1150 | 25 | 1200/1100 |
YS9090A | 2800 | 0.90 | 1610 | 52 | 1300/1200 |
YS9094A | 1600 | 0.94 | 1050 | 20 | 1200/1100 |
YS9095A | 1500, 2600 | 0.95 | 1385 | 36 | 1200/1100 |
